Products
Standard components, designed for your individual requirements
Reliability and quality for your application
Contact systems
Our maintenance-free slip ring assemblies offer the highest levels of precision and reliability. They offer excellent transmission quality and durability, guaranteeing loss-free signal and power transmission even under extreme conditions.
Advanced technologies, such as our gold/gold technology, which is specially designed to transmit the finest currents and signals, ensure that your systems always operate at maximum efficiency.
The basis for this quality is perfect adaptation to your specific requirements, which we guarantee through intensive consultation and many years of experience.
Technology
Gold-to-gold transmission technology makes slip ring assemblies suitable for applications at high and low temperatures, in vacuum or in potentially explosive atmospheres.
Our products are designed to provide high contact quality, low contact resistance, high corrosion resistance and maintenance free operation over hundreds of millions of revolutions.
Gold / Gold
This modern transmission technology enables the transmission of finest currents and higher power.
The slip rings are coated with a special hard gold coating of 400 Vickers hardness, which guarantees extremely high contact quality and corrosion resistance.
The spring system with at least two gold contacts per ring ensures precise contact and guarantees reliable signal transmission, e.g. for Profibus or Ethernet.
High Speed
The highest speeds are achieved through our innovative multi-layer gold and gold sintering.
This combination enables speeds of over 20,000 revolutions per minute without any loss of transmission quality.
This maintenance-free technology is ideal for applications that require extreme speeds and maximum precision with maximum service life.

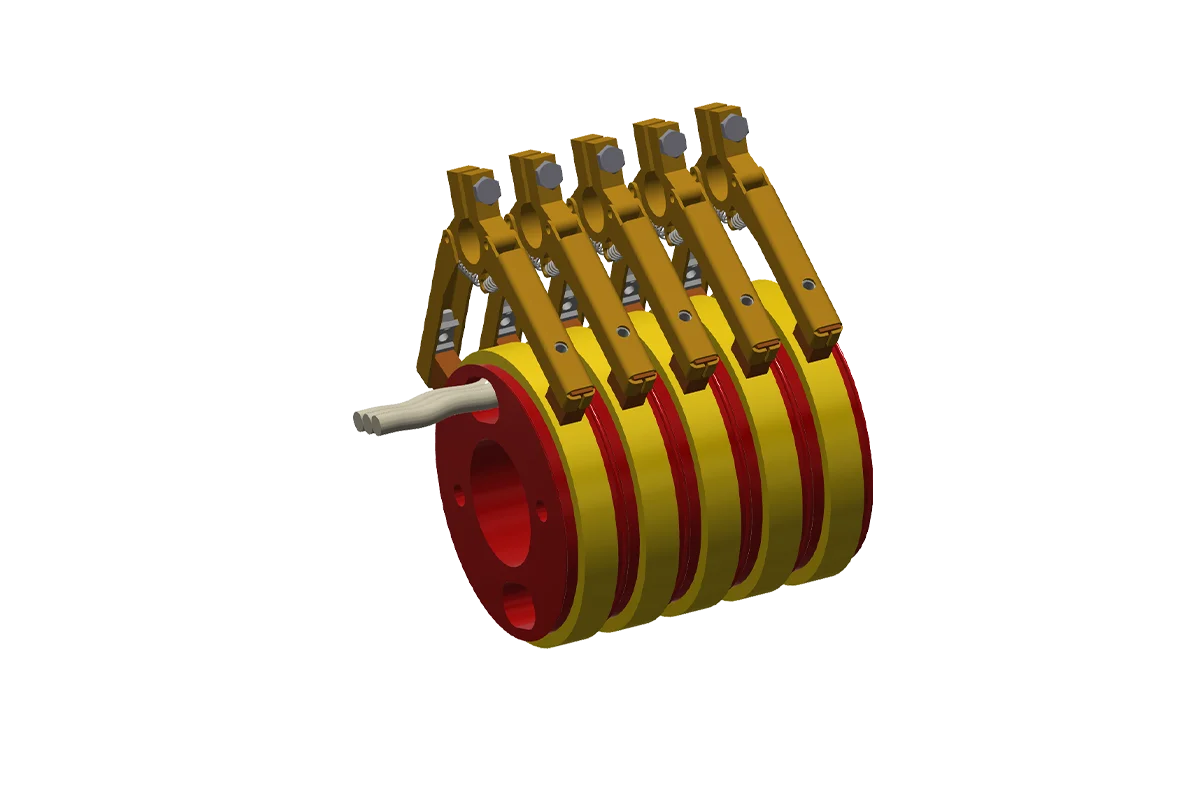

Carbon Brushes
Carbon brush technology is a tried and tested method of transmitting electrical currents, but has now been superseded by modern solutions like the gold/gold plating and high-speed systems.
While carbon brushes continue to be used in simple and robust applications, the new technologies offer greater efficiency, precision and durability. Nevertheless, carbon brushes are still used for less demanding applications.
Our 4 model series
Variety that adapts to your requirements
Regardless of whether power, signals or media such as compressed air, vacuum, oil and water are to be transmitted: By combining standard components with customized modifications, our type series offer the perfect balance between proven technology and individual solutions.

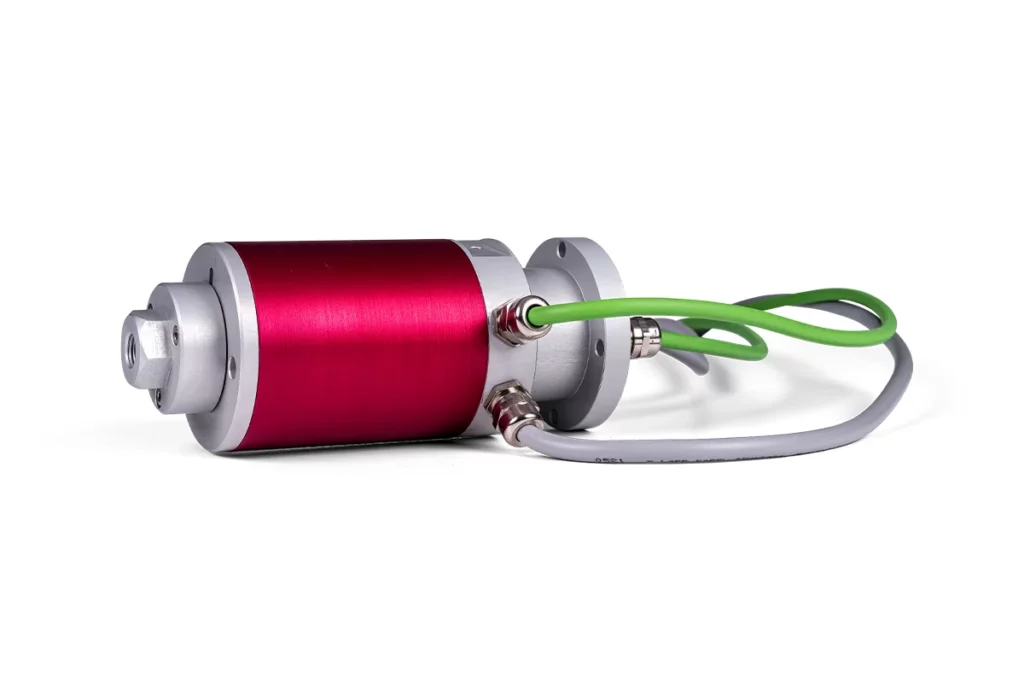

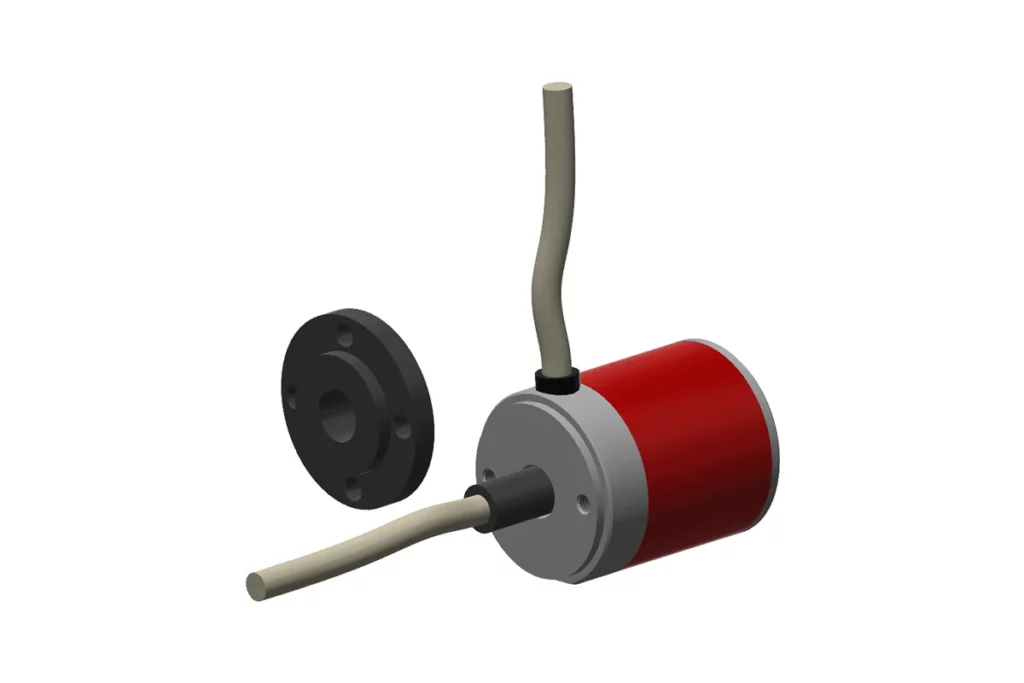

SRK
Slip ring assembly as a closed system
The SRK series from Rie-Tech consists of closed components with their own bearings, which have IP 64 protection as standard.
These slip ring assemblies are robust and offer reliable protection against external influences, making them ideal for demanding industrial applications. The SRK components are versatile and can be customized to suit different requirements, including different shaft and flange designs.
Due to their enclosed design, they offer excellent stability and durability, even in harsh environments. This type series enables easy mounting on your system and is therefore a flexible solution for different application scenarios. The components are customized according to the customer’s specific requirements in terms of the number of poles, current load and type of signals to be transmitted.
A particular strength of the SRK series is the option of integrating media transmitters for air, water or hydraulic oil, which makes this series particularly versatile.

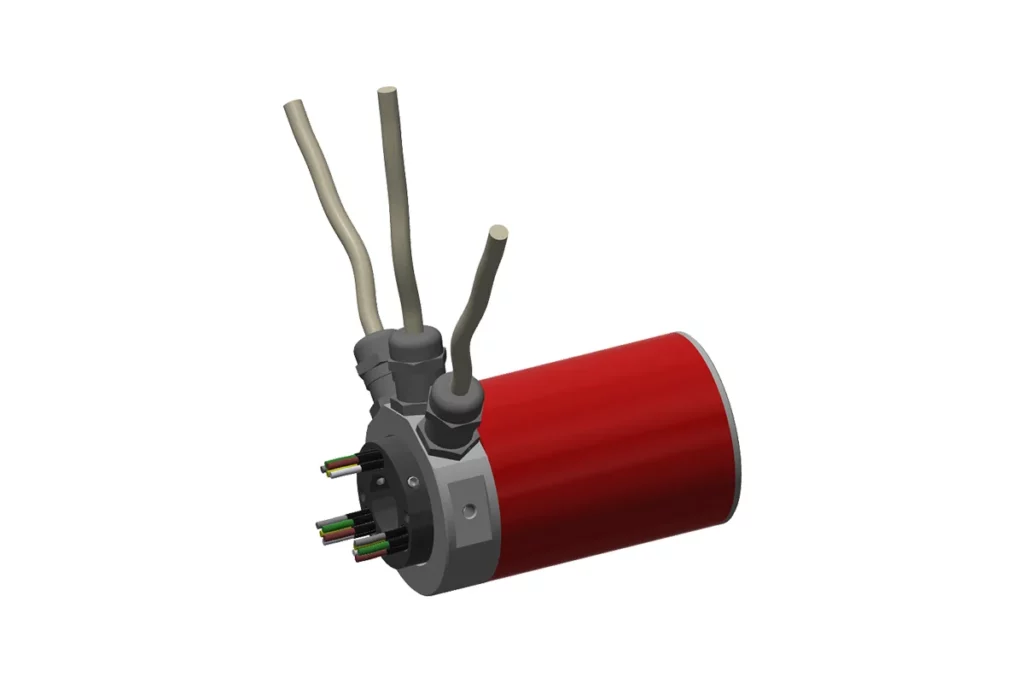

SRW
Slip ring assembly with through hole
The SRW series is specially designed for applications where a through-hole is required so that they can be mounted on a shaft.
These slip ring assemblies are also closed components with their own bearings and have IP 64 protection as standard. They offer the same robust features as the SRK range, but with the added flexibility of the through-hole for easy integration into existing systems.
This type series is ideal for applications that require a higher load capacity and flexibility. The SRW slip ring assemblies can be customized to the customer’s specific requirements, including pole count, current load and signal transmission.
The through-bore makes the size of these slip ring assemblies larger, which makes them a slightly more expensive solution. However, they are an excellent choice when the SRK type series is not suitable due to space or installation requirements.

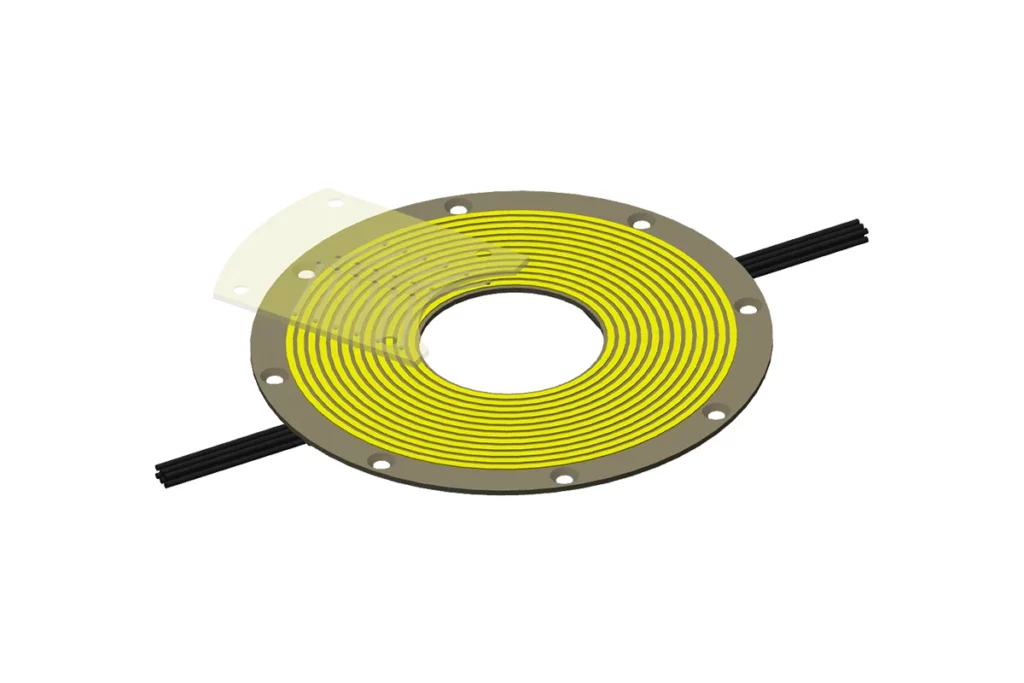

SRP

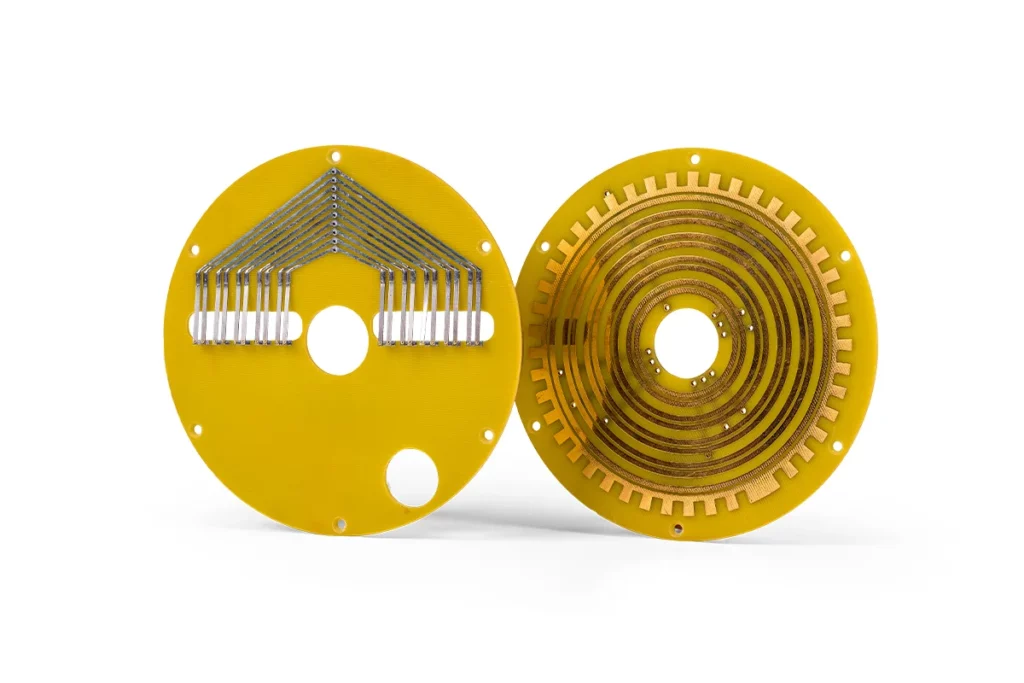

Planar or pancake slip ring assembly as a Closed or Open System
The SRP Series is the ideal choice for applications where a short overall length is required and only space is available in the diameter. The SRP includes both possibilities, closed and open systems designed to meet specific requirements.
SRP slip ring assemblies are characterized by the radial arrangement of the slip rings, which allows a compact design in terms of length.
SRP slip ring assemblies are designed to meet specific customer requirements and offer adaptability in terms of number of poles, current load and signal transmission.
The use of gold/gold transfer technology also ensures high contact quality and reliability.

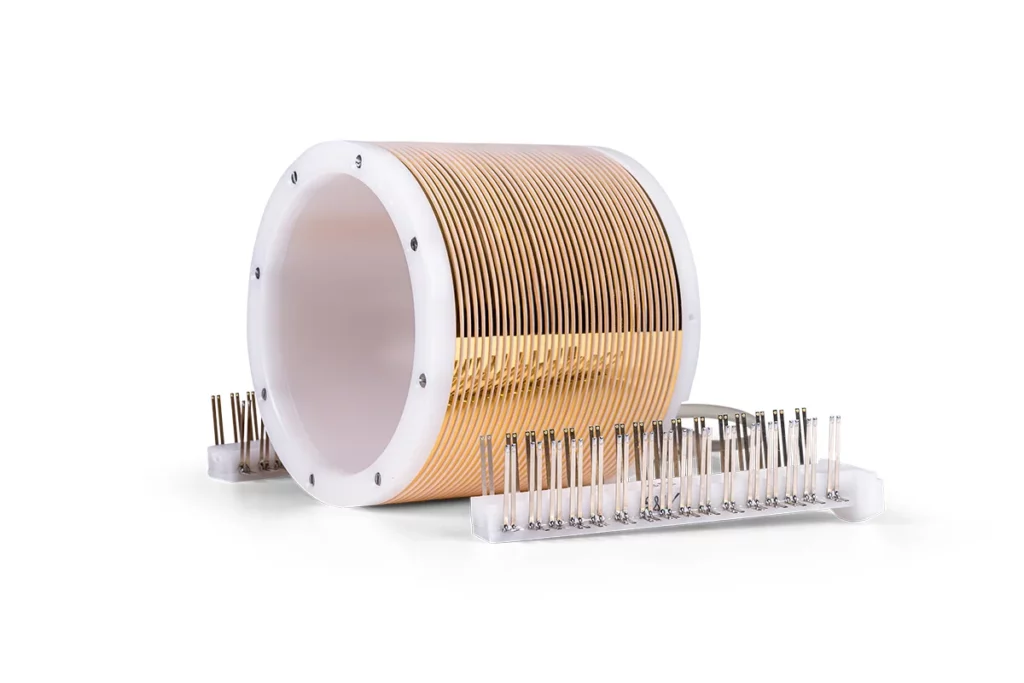

SRO
Open system for special applications
Rie-Tech’s SRO series are slip ring assemblies supplied without a housing. These components are intended for applications where the user is responsible for protection and assembly.
The SRO Series has been specifically designed for demanding installation spaces and can be designed in a variety of transmission technologies such as gold/gold, high speed or conventional carbon brush technology.
This flexibility makes the SRO Series the preferred choice for projects that require a customized solution.
projects that require a bespoke solution.
This type is ideal when enclosed components cannot be used and customization is a priority.
model overview
Select the series and familiarize yourself with initial configuration options:
model series SRk
The SRK series covers closed slip ring assemblies with their own bearings and IP 64 or 65 protection rating, making them ideal for industrial applications where a robust and reliable solution is required.
Model variant
The SRK can be designed in different variants as a basic type and can be combined with single or multi-channel air or media exchangers.
1
Slip ring assembly closed
IP 64 with shaft flange.
2

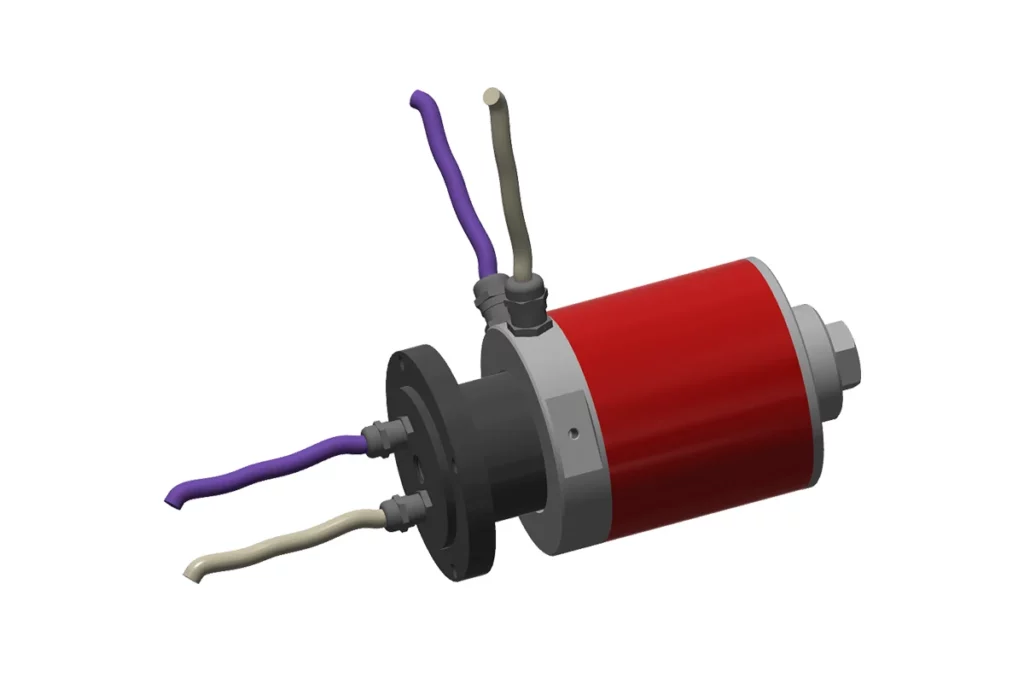

Slip ring assembly closed
IP 64 with 1-channel media transmitter for air, vacuum or water pressure up to 10 bar.
3
Slip ring assembly closed
IP 64 with 1-channel media transmitter for air, vacuum or water pressure up to 10 bar.
4
Slip ring assembly closed
IP 64 with multi-channel media transformer for air, vacuum or water pressure up to 10 bar.
5

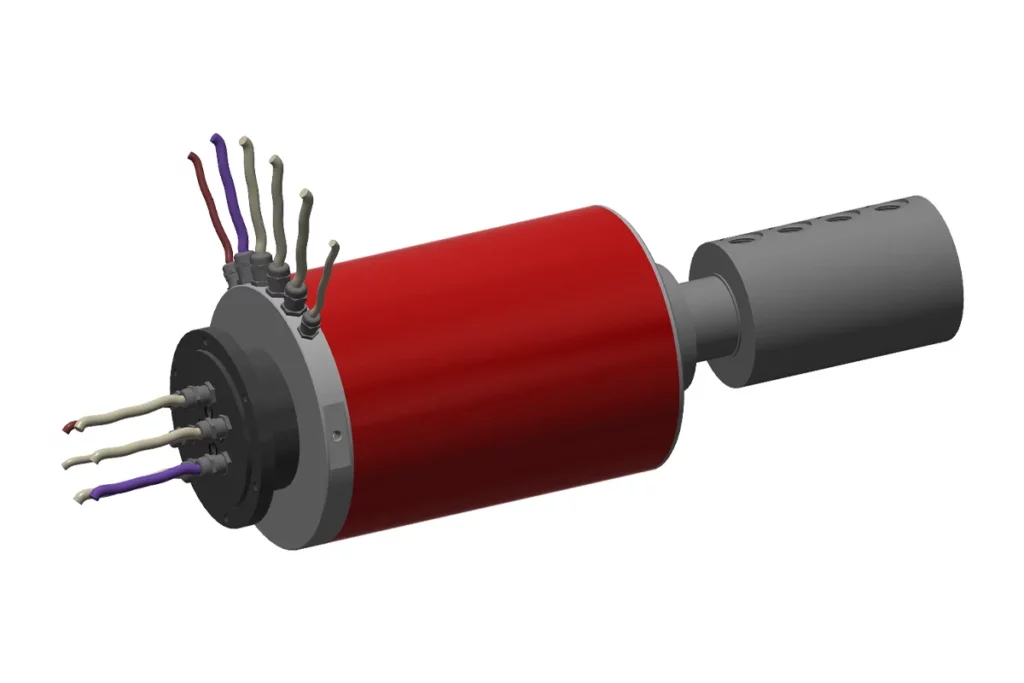

Slip ring assembly closed
IP 64 with multi-channel media transfer unit for hydraulic oil, electrical part mounted at the front. Pressure up to 500 bar.
6
Slip ring assembly closed
IP 64 with multi-channel media transfer unit for hydraulic oil, electrical part mounted at the rear. Pressure up to 500 bar.
Flange variations
The slip ring assemblies have different flange variants to ensure optimum integration and stability.
1
STANDARD LONG
The flange has a distance to the housing and through-holes to connect screws from the flange side to the shaft.
2

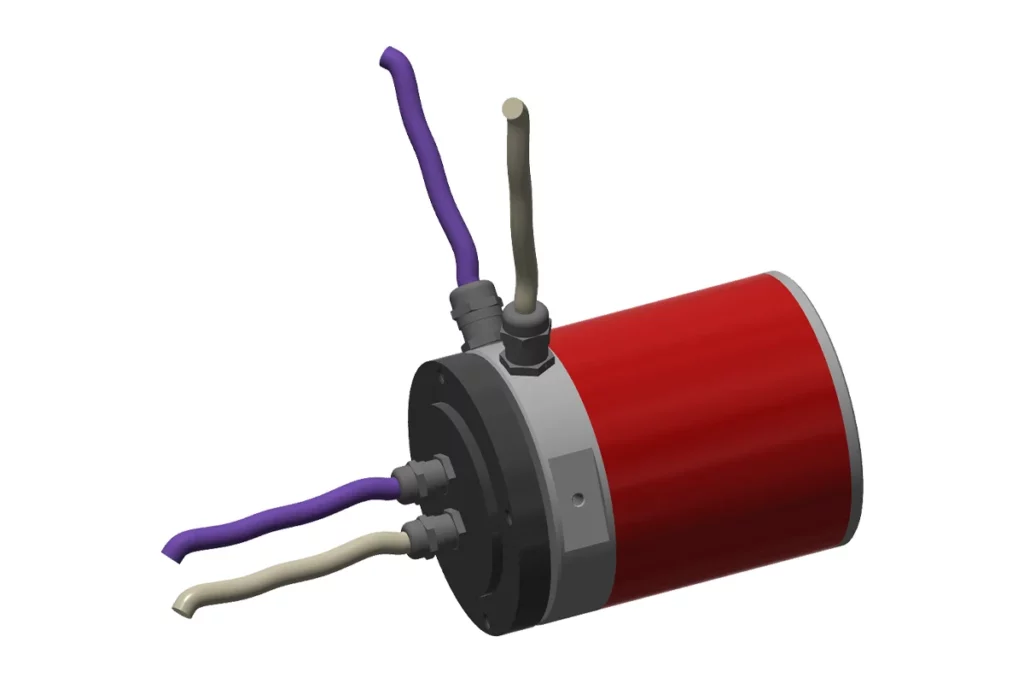

STANDARD SHORT
The flange is directly on the housing and has threads to connect screws from the shaft to the flange.
3
OVERVIEW
Large flange with projection to the housing and through-holes for using screws from the flange side. Short overall length and fastening from the system side possible.
Types of electrical connections
The slip ring assemblies offer flexible connection options that can be customized to your specific requirements.
1

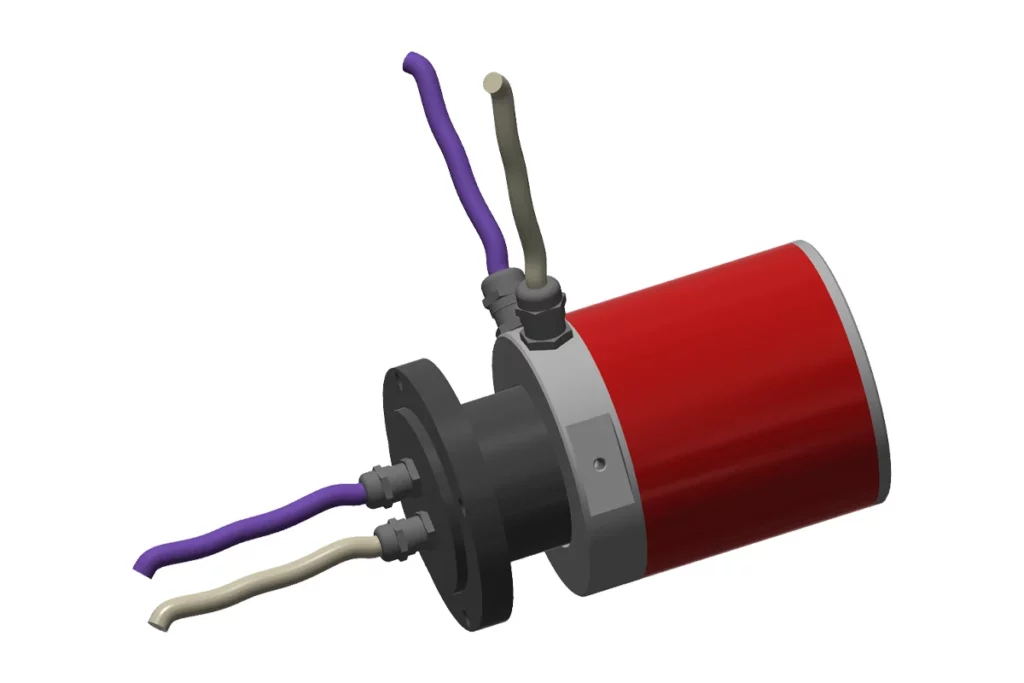

CABLE OUTPUT
Standard version, housing side and flange side with cable.
2
CABLE + PLUG
Flange side with cable, housing side with plug.
3
PLUG
Flange side with plug, housing side with plug.
4

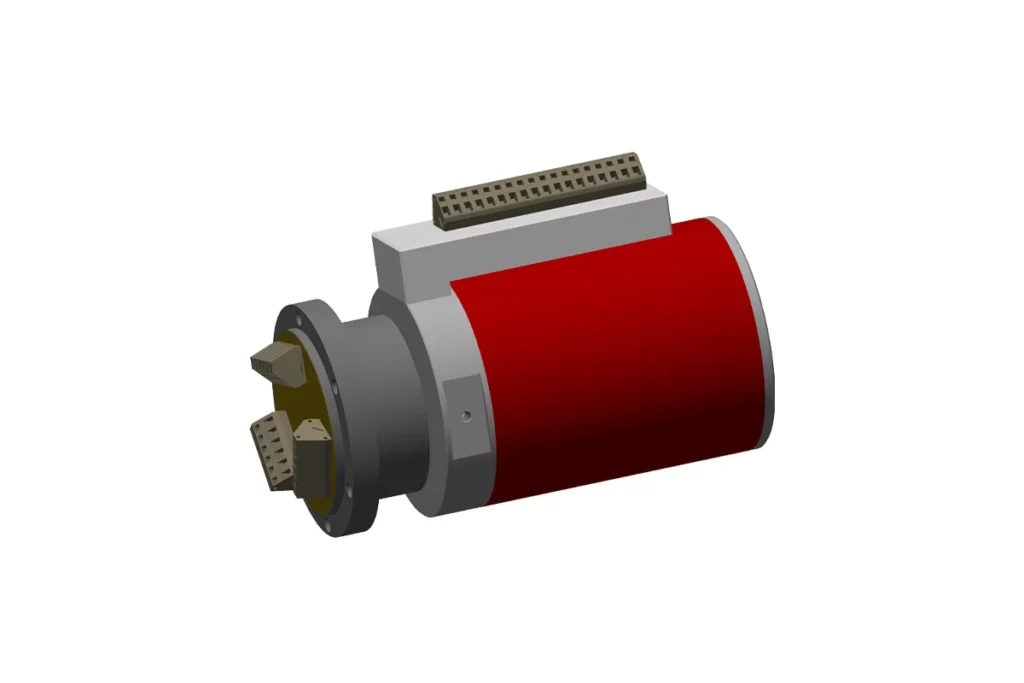

CLAMPING STRIPS
Flange side and/or housing side with clamp
5
BELL
Contacting via a connection bell with forced contacting via plug.
model series SRW

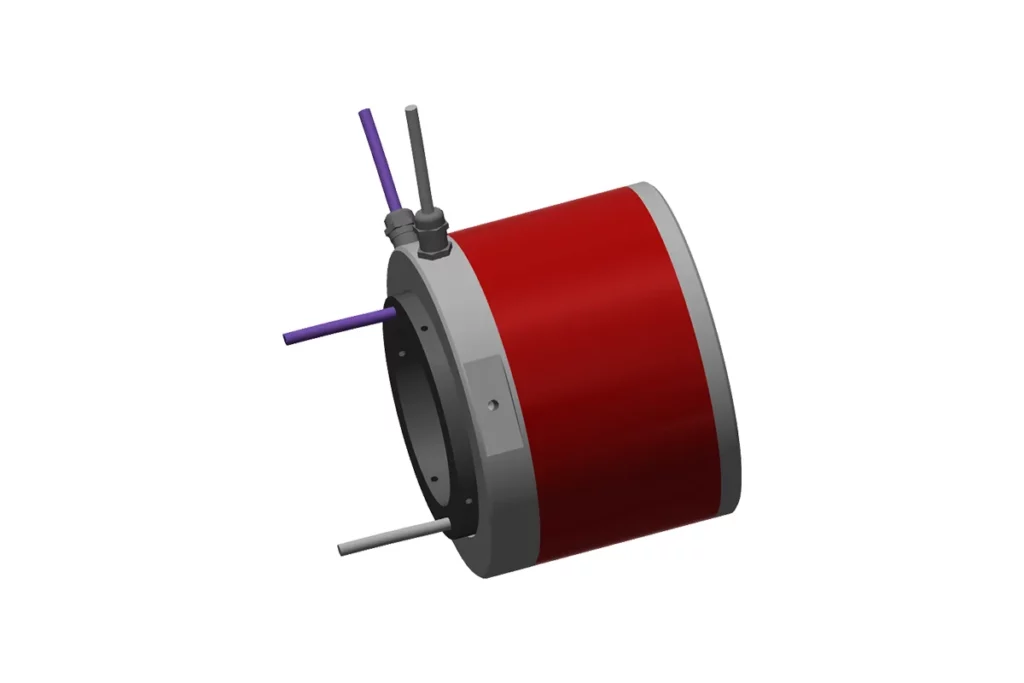

The SRW series offers closed slip ring assemblies with a through bore that can be mounted on a shaft. This solution is designed for applications where the slip ring assembly cannot be mounted on the end of the shaft.
Model variant
The SRW can be designed in different variants as a basic type and can be combined with single or multi-channel air or media exchangers.
1
Slip ring assembly closed
IP 64 Standard version with hollow shaft; fastened to the customer shaft by clamping.
2
Slip ring assembly closed
IP 64 Standard version with hollow shaft and flange. Fastening at the customer’s premises by screwing the flange tight.
3
Slip ring assembly closed
IP 64 with single or multi-channel, media transmitter for air, vacuum or water.
4
Slip ring assembly closed
IP 64 with multi-channel media transfer unit for hydraulic oil; through-hole through hydraulic and electrical parts.
Arten des elektrischen Anschlusses
1

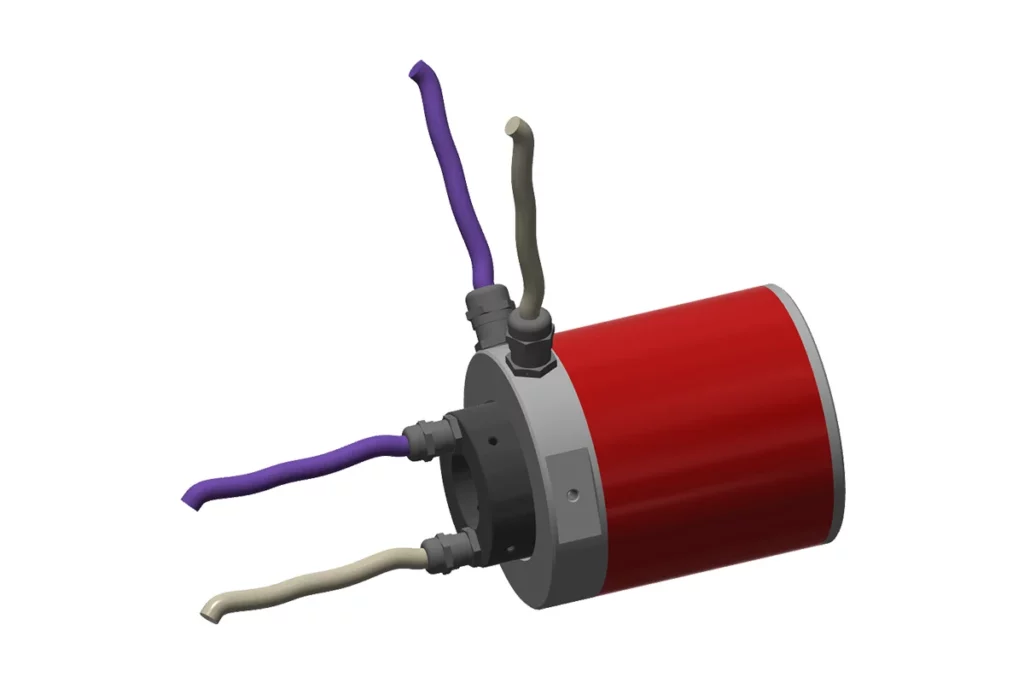

CABLE OUTPUT
Standard version, housing side and flange side with cable.
2
CABLE + PLUG
Flange side with cable, housing side with plug.
3
PLUG
Flange side with plug, housing side with plug.
4

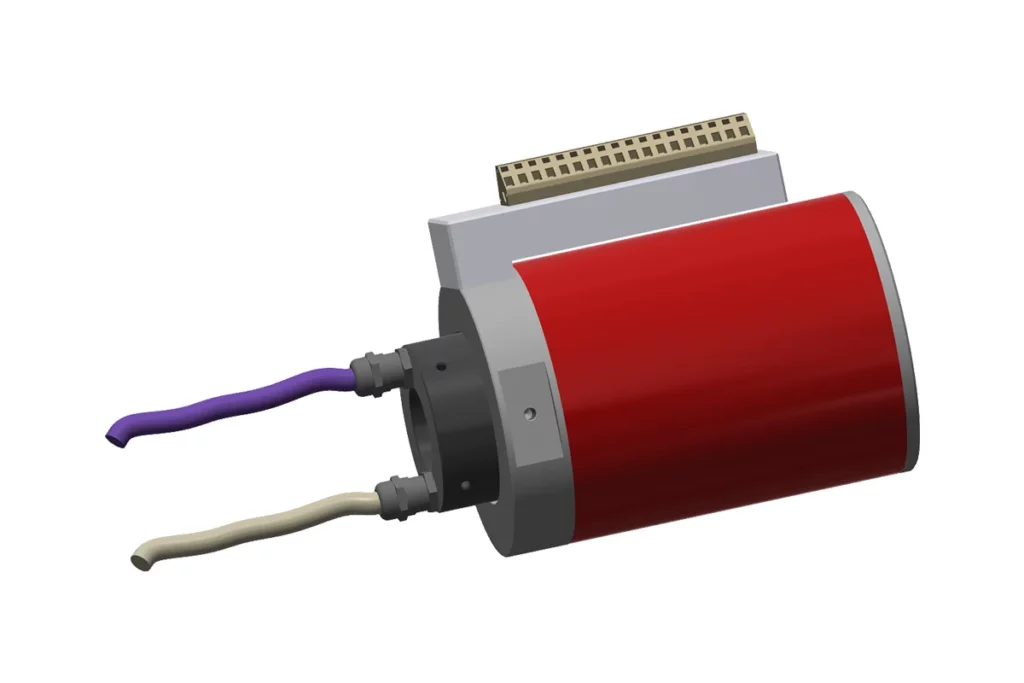

CABLE + TERMINAL STRIP
Flange side with cable, housing side with terminal.
model series SRP
The SRP Series consists of slip ring assemblies manufactured in either a closed or open design, allowing for compact construction. They are particularly suitable for applications with limited space and special requirements.
1
SRP Type 1
The SRP type 1 is an open design that offers you maximum flexibility during installation. You have control over the bearing and the correct installation position, allowing you to optimize the slip ring assembly to your specific requirements. Please note that protection against contact and soiling must be provided by you to ensure trouble-free functionality.
2

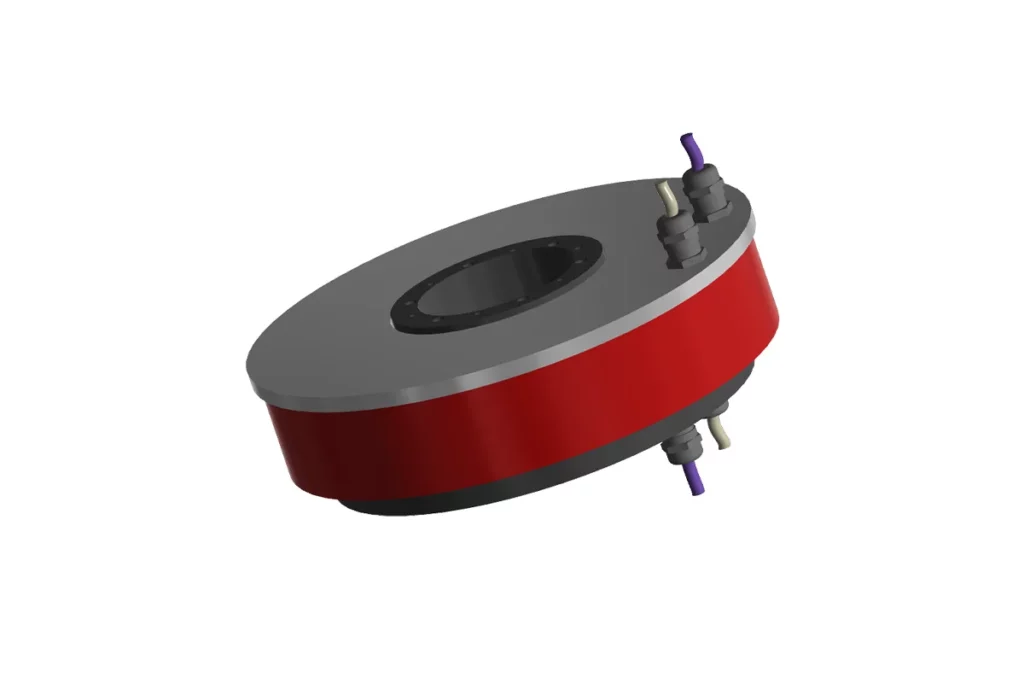

SRP Type 2
The SRP Type 2 offers you a closed solution with integrated protection to IP 64, ideal for demanding environments. This variant is designed for customers who value additional safety and protection against external influences without compromising on performance. The slip ring assembly is already fully encapsulated and ready for immediate use to reliably fulfil your requirements.
The slip ring assembly is already fully encapsulated and ready for immediate use to reliably fulfil your requirements.
model series SRO
The SRO series from Rie-Tech are slip ring assemblies that are supplied without a housing. These components are intended for applications where the user is responsible for protection and assembly.
1
SR0 Type 1

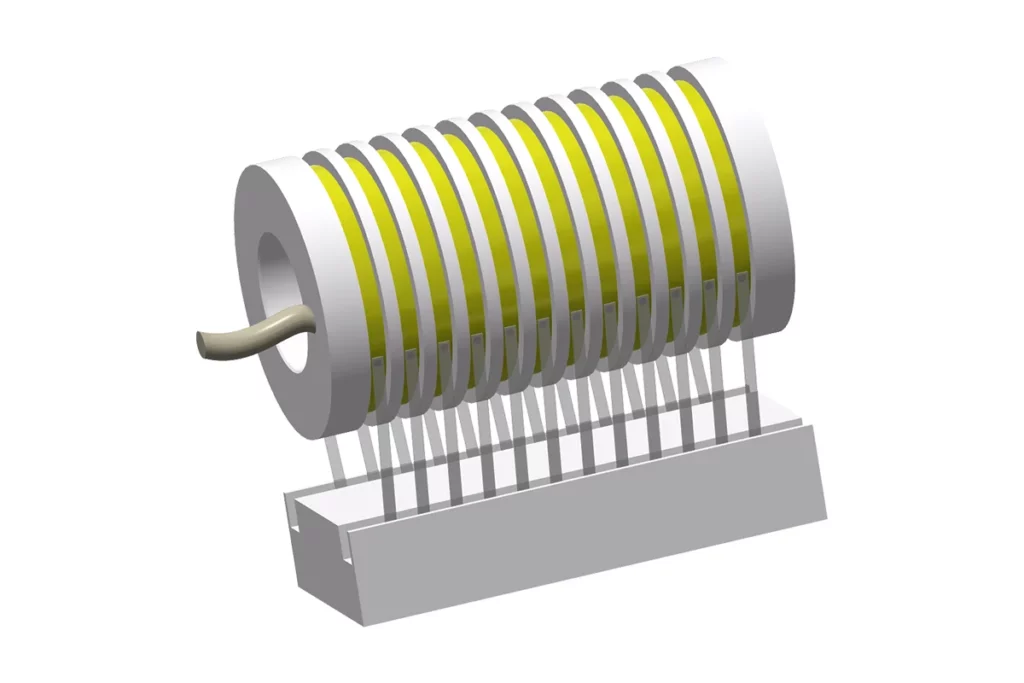

Gold/gold transmission technology, or high-speed gold/gold technology. These components can be used for signal and power transmission. We produce these components in a very compact design, but the operator is responsible for correct installation, protection against contact and contamination.
2
SRO Type 2

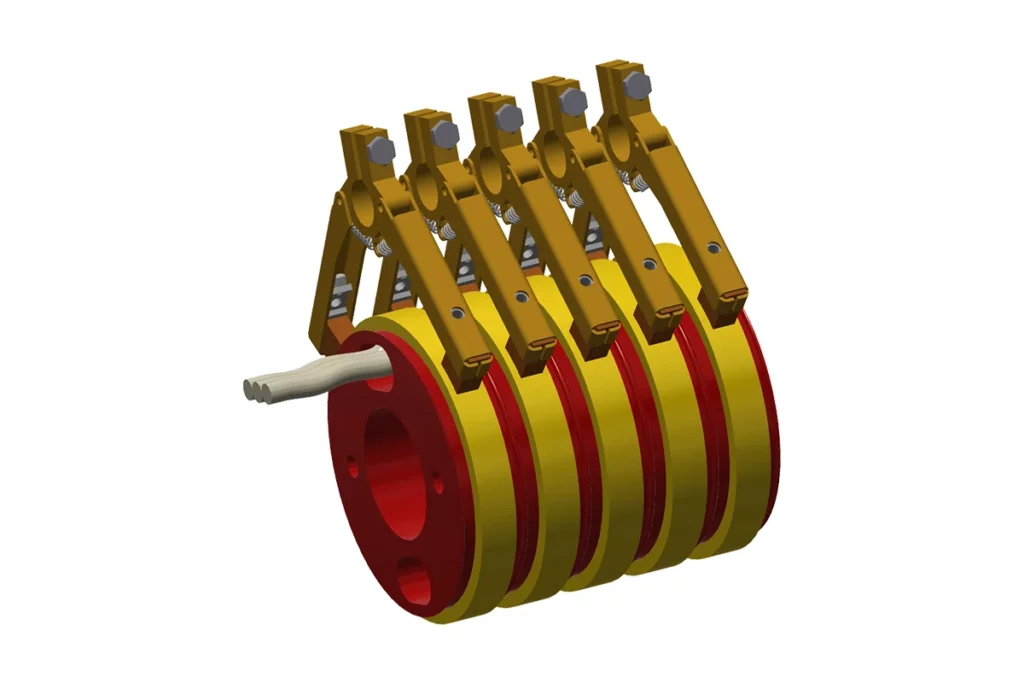

Conventional carbon brush technology. The transmission of current with carbon brushes via bronze rings has been practised for many years. This technology is only suitable for simple requirements and not for signals.
The operator is responsible for correct installation, protection against contact and contamination.
AVAILABLE FROM STOCK
Our most popular slip ring assemblies are available from stock to meet your requirements quickly and efficiently. These stock items give you access to proven Rie-Tech quality without compromising on proven technology.
1
SRK 40 6-, 12- or 18-pole
SRK 40, 6-, 12- or 18-pole slip ring assembly IP 64 closed: mA-4A mV-250V, up to 300 1/min.
2
SRW 50 5-, 10-, oder 15-pole
SRW 50, 5-, 10- or 15-pole slip ring assembly IP 64 closed, with through hole: mA-5A mV-250V, up to 200 1/min.
3
SRK 80 with 10-pole and air channel
SRW 80, 10-pole slip ring assembly closed, IR64, for 5x power supply mA-12 A, ProfiNet and compressed air ¼’.
SRK 40
6-, 12- oder 18-polig
SRK 40, 6-, 12- oder 18-polig Schleifringkörper geschlossen IP 64: mA-4A mV-250V taktend bis 300 1/min.
SRW 50
5-, 10-, oder 15-polig
SRW 50, 5-, 10-, oder 15-polig Schleifringkörper geschlossen IP 64, mit durchgehender Bohrung: mA-5A mV-250V taktend bis 200 1/min.
SRK 80 10-polig
mit Luft
SRW 80, 10-polig Schleifringkörper geschlossen, IR64, für 5x Stromversorgung mA-12 A, Übertragung ProfiNet und Druckluft ¼“.
SRO Typ 1
Gold/Gold-Übertragungstechnik, oder High Speed-Gold/Goldtechnik. Diese Bauteile können für die Signal- und Leistungsübertragung eingesetzt werden. Diese Bauteile bauen wir sehr kompakt, es wird jedoch vom Betreiber die Verantwortung für den richtigen Einbau, Berührungsschutz und Schutz vor Verschmutzung übernommen.
SRO Typ 2
Konventionelle Schleifkohlentechnik. Die Übertragung von Strom mit Schleifkohlen über Bronzeringe wird schon seit vielen Jahren praktiziert. Diese Technik ist nur für einfache Anforderungen und nicht für Signale geeignet.
SRP Typ 1
Der SRP Typ 1 ist eine offene Ausführung, die Ihnen maximale Flexibilität bei der Installation bietet. Sie haben die Kontrolle über die Lagerung und den positionsrichtigen Einbau, wodurch Sie den Schleifringkörper optimal an Ihre spezifischen Anforderungen anpassen können. Bitte beachten Sie, dass der Schutz vor Berührung und Verschmutzung von Ihrer Seite gewährleistet werden muss, um eine störungsfreie Funktionalität sicherzustellen.
SRP Typ 2
Der SRP Typ 2 bietet Ihnen eine geschlossene Lösung mit einem integrierten Schutz nach IP 64, ideal für anspruchsvolle Umgebungen. Diese Variante ist für Kunden gedacht, die Wert auf zusätzliche Sicherheit und Schutz vor äußeren Einflüssen legen, ohne dabei Kompromisse bei der Leistung einzugehen. Der Schleifringkörper ist bereits vollständig ummantelt und sofort einsatzbereit, um Ihre Anforderungen zuverlässig zu erfüllen.
SRW Typ 1
Schleifringkörper geschlossen, IP 64 Standardausführung mit Hohlwelle; Befestigung auf der Kundenwelle erfolgt durch Klemmung.
SRW Typ 2
Schleifringkörper geschlossen, IP 64 Standardausführung mit Hohlwelle und Flansch. Befestigung beim Kunden durch Festschrauben des Flansches.
SRW Typ 3
Schleifringkörper geschlossen, IP 64 mit Ein- oder Mehrkanal, Medienübertrager für Luft, Vakuum oder Wasser.
